Introduction
Building a house is one of the biggest investments in life. But what if, soon after construction, cracks start appearing on the walls, doors stop closing properly, or floors begin to sink unevenly? The hidden culprit behind such problems is often weak soil beneath the foundation.
In India, especially in semi-urban and rural areas, houses are often built without detailed soil testing. As a result, many footings rest on clayey, loose, or water-logged soil that cannot handle the load of the structure for long.
The good news is that even if your house is already complete, there are proven engineering techniques to strengthen weak soil and stabilize the footing. This article will walk you through the causes of weak soil, early warning signs, and the best solutions to fix foundation problems — in simple language anyone can understand.

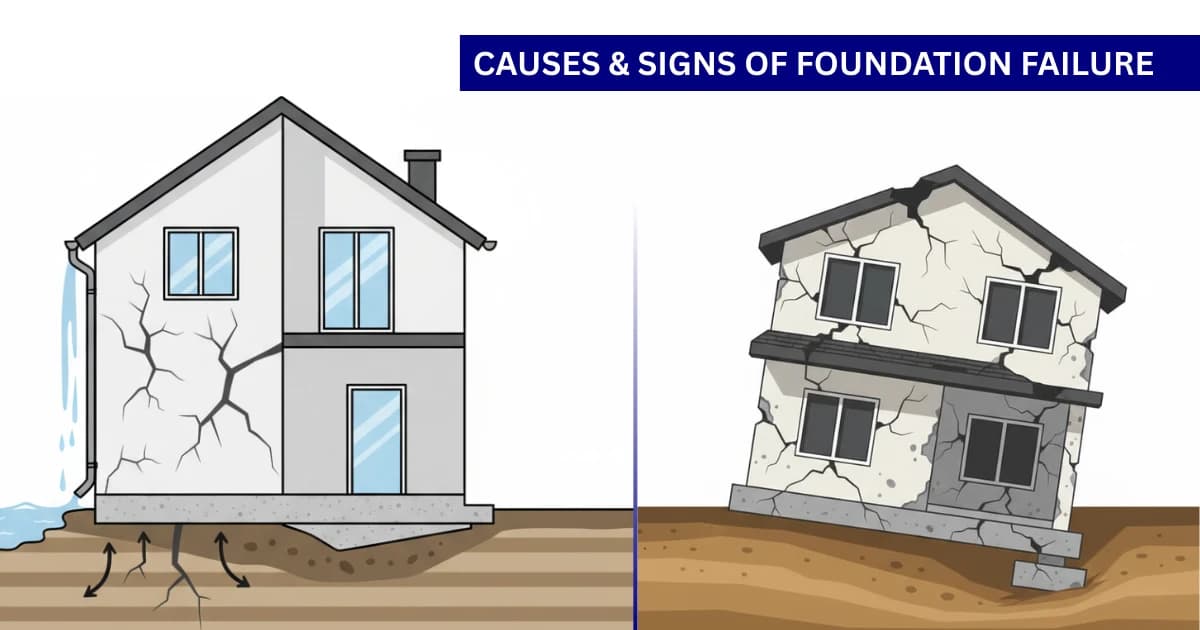

How to Identify Weak Soil Under Your House
Foundation problems rarely appear overnight. They usually show early warning signs that should not be ignored.
For example, small cracks on walls and floors, especially near doors, windows, and corners, are among the first indicators. Another common issue is when doors and windows start jamming, caused by uneven settlement of the structure. You may also notice gaps forming between the floor and the plinth wall or even a slight tilt in walls and columns.
In many cases, poor drainage causes water to accumulate around the house, further softening the soil. If you notice two or more of these symptoms, it’s time to consult a structural engineer and consider soil strengthening techniques.
Why Weak Soil Creates Problems in Houses
The main reason weak soil is dangerous for construction is its low bearing capacity. Simply put, the soil is unable to carry the weight of the house evenly. This leads to settlement issues and structural distress.
Some common weak soil conditions include:
Clayey Soil – shrinks during dry seasons and swells during rains, creating constant movement under the foundation.
Loose Sand or Silt – easily displaced or washed away with water, making it unreliable for heavy loads.
Water-logged Soil – loses strength due to high moisture, leading to soft spots beneath the foundation.
When a footing rests on these types of soils, the house gradually experiences differential settlement. This not only damages walls and floors but also poses long-term safety risks. Strengthening weak soil is therefore not just about repairing cracks — it’s about protecting the entire structure and the people living inside.
Read also: NCC Wins ₹2,090 Cr Barnar Reservoir Project in Jamui, Bihar
Proven Methods to Strengthen Weak Soil Under Existing Footings
Now let’s explore the engineering solutions commonly used to stabilize foundations. These methods vary from quick fixes to permanent solutions depending on the severity of the soil weakness.
1. Cement or Chemical Grouting
Grouting involves drilling small holes near the foundation and injecting cement slurry, resin, or polyurethane under pressure. The material fills the soil voids, compacts loose particles, and hardens the base beneath the footing.
This method is relatively fast, cost-effective, and does not disturb residents. It is ideal for minor to moderate settlement issues where cracks are just beginning to appear.
2. Underpinning (Pit Method)
Underpinning is like giving your foundation a new set of legs. In this method, alternate pits are carefully excavated below the existing footing, and fresh concrete blocks are added to extend the foundation deeper into stronger soil layers.
The load of the building is gradually transferred to these new supports, making it a permanent and highly reliable solution. Underpinning is best suited for severe settlement problems or where large cracks threaten the stability of the house.

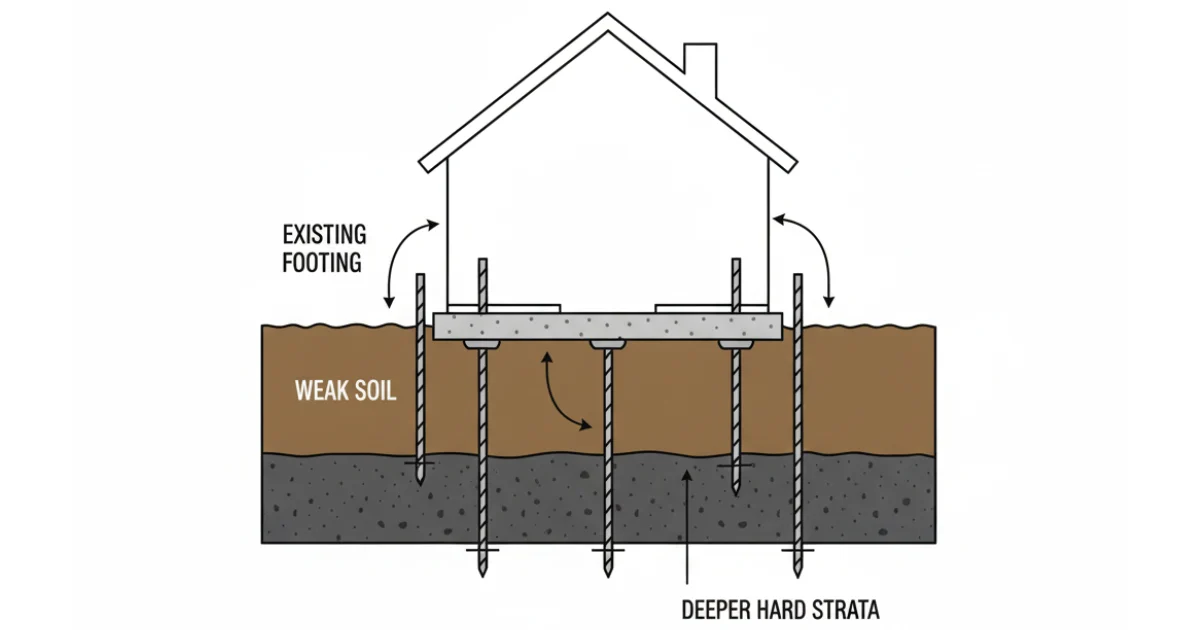

3. Micro-Piles (Mini-Piles)
Micro-piling is a modern method where small-diameter piles (100–150 mm) reinforced with steel are drilled beside or beneath the footing. These piles carry the load deep into hard strata or rock layers.
Micro-piles provide long-term stability even in very weak soils. They are particularly useful for multi-storey residential buildings or for houses built on clayey or water-logged soils.
Read also: Construction Industry News: September 2025

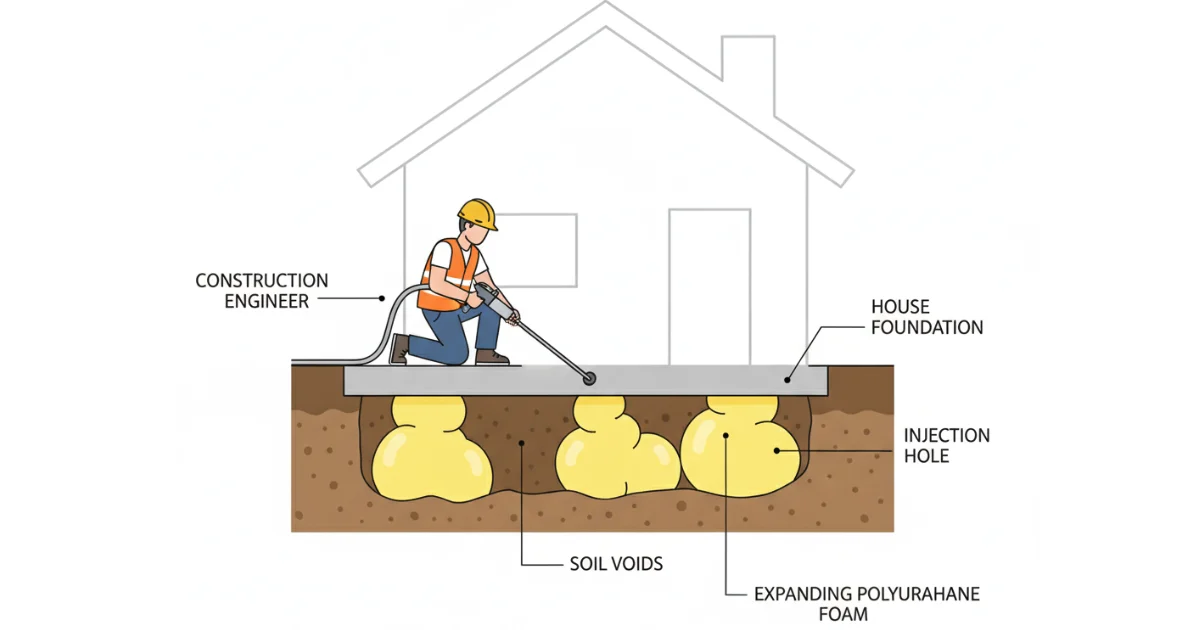

4. Expanding Resin Injection (Polyurethane Foam)
This advanced technique involves drilling small holes and injecting special PU foam. The resin expands rapidly, filling soil voids and hardening within minutes. As it expands, it also lifts and stabilizes the foundation.
The biggest advantage of resin injection is speed. The process is clean, fast, and allows residents to stay inside the house during the work. It is best suited for light to moderate settlement issues where quick stabilization is needed.

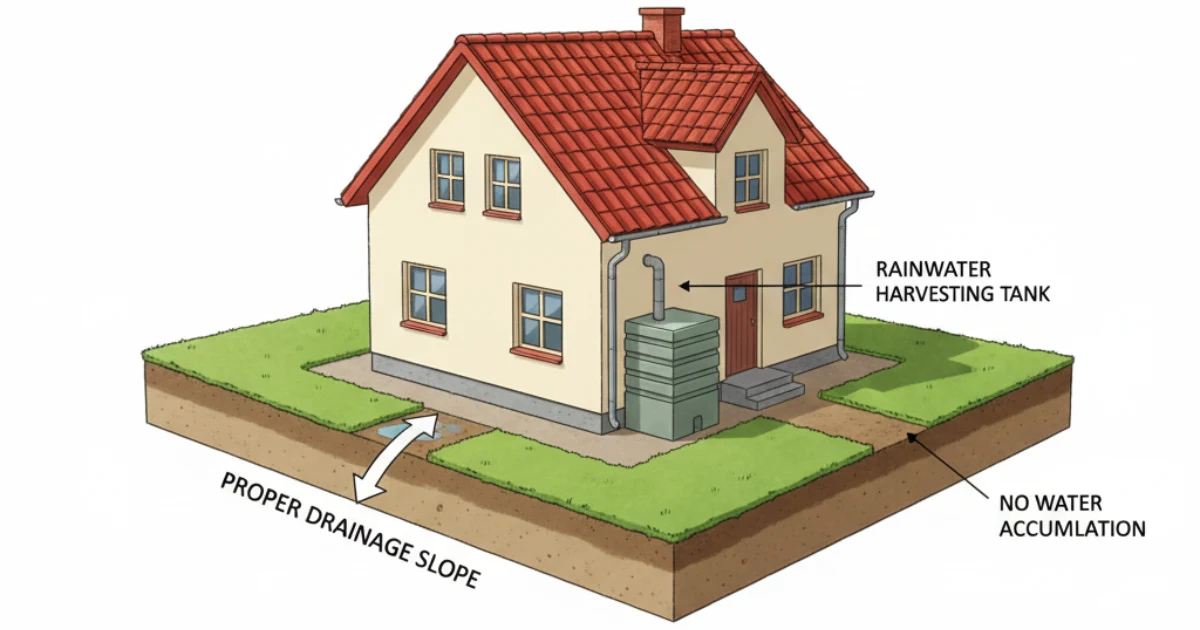

Preventive Practices to Keep Soil Strong
Repairing a weak foundation is possible, but prevention is always better. Homeowners can adopt the following practices to avoid soil weakening:
Proper Drainage: Ensure rainwater or wastewater does not collect near the house. Slope the ground away from the foundation.
Rainwater Harvesting: Channel roof water into tanks or soak pits instead of letting it seep around the foundation.
Compaction of Backfill: During construction, always compact the soil around the footing to prevent future settlement.
Vegetation Control: Avoid planting large trees too close to the house, as roots can disturb and weaken the soil.
Conclusion
Weak soil beneath footings is a silent problem that can damage even the strongest walls over time. Ignoring early signs like cracks, tilting, or water accumulation can lead to costly repairs and structural risks.
Fortunately, modern engineering offers reliable methods — from simple cement grouting to advanced micro-piles and resin injections — that can restore stability and protect your investment.
By acting early, consulting experts, and adopting preventive practices, you ensure not just the safety of your house today but also its durability for future generations.
Frequently Asked Questions
Q1. Can weak soil be fixed after a house is built?
Yes. Techniques like grouting, underpinning, micro-piling, and resin injection are specifically designed for existing houses. Uretek offers soil strengthening under footing.
Q2. Which method is the most affordable?
Cement grouting is usually the most cost-effective for minor settlement.
Q3. When should underpinning be used?
Underpinning is required when settlement is severe, cracks are large, or there is a risk of foundation collapse.
Q4. Do these solutions require vacating the house?
Not always. Grouting and resin injection can often be done while residents remain inside. Underpinning or piling may require partial relocation, depending on the scale of work.
Q5. How do I know which method is right for my house?
Only a structural engineer can confirm the correct solution after a site inspection and soil analysis.
